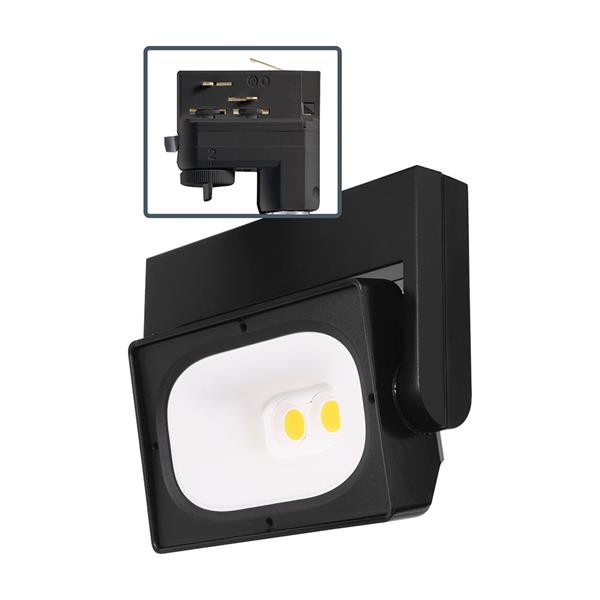

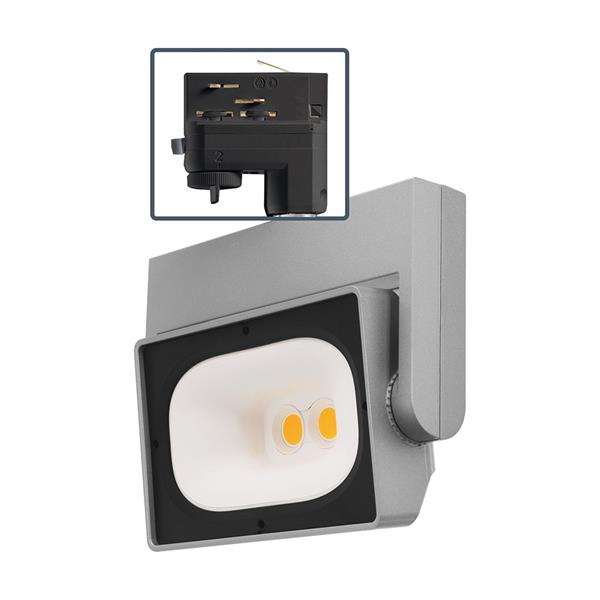

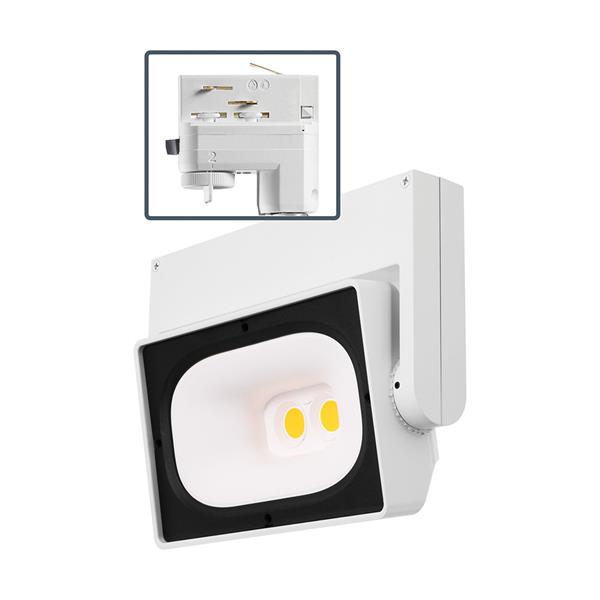

T1052L HTEK Trac Head

Trac-Master® Narrow Profile Wall Wash, Flood LED Trac Head with HTEK Adapter
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Powerful and bold, the Juno® HTEK T1052L wall wash/flood LED track fixture delivers high-intensity, state-of-the art illumination up to 3206 lumens from just 22-watts input, resulting in energy-saving efficacy. The slim profile design is available in three finishes and permits the fixture to integrate within the surrounding environment. Enclosed wiring keeps the aesthetic clean, simple, and consistent. A custom hyperbolic reflector delivers exceptionally uniform, wide beam distributions while minimizing aperture brightness for maximum visual comfort. The HTEK T1052L wall wash/flood fixture provides 360° horizontal rotation and 90° vertical aiming, and it is designed with vertical aiming scales and locking set screws. It is compatible with the 277V, Juno HD Commercial Trac system. An assortment of light control accessories is also available.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 3200 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Track Head
Compliance Listing BAA and BABA
Regulatory Listing cUL, UL
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 277
Fixture Wattage 22
Track Mounting Adapter HTEK
Series T1052L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Juno Trac T105xL Narrow Profile Wall Wash.pdf T105xL Specification Sheet 10/16/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    1 - 1 of results

    Description Report Design Tools
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_Juno Trac_T1052_27K_80CRI.pdf T1052_27K_80CRI 8/29/2022 View
    Spectral Data Sheet SpectralDataSheet_Juno Trac_T1052_27K_90CRI.pdf T1052_27K_90CRI 8/29/2022 View
    Spectral Data Sheet SpectralDataSheet_Juno Trac_T1052_30K_80CRI.pdf T1052_30K_80CRI 8/29/2022 View
    Spectral Data Sheet SpectralDataSheet_Juno Trac_T1052_30K_90CRI.pdf T1052_30K_90CRI 8/29/2022 View
    Spectral Data Sheet SpectralDataSheet_Juno Trac_T1052_35K_80CRI.pdf T1052_35K_80CRI 8/29/2022 View
    Spectral Data Sheet SpectralDataSheet_Juno Trac_T1052_35K_90CRI.pdf T1052_35K_90CRI 8/29/2022 View
    Spectral Data Sheet SpectralDataSheet_Juno Trac_T1052_40K_80CRI.pdf T1052_40K_80CRI 8/29/2022 View
    Spectral Data Sheet SpectralDataSheet_Juno Trac_T1052_40K_90CRI.pdf T1052_40K_90CRI 8/29/2022 View

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3219.pdf HTEK 277V Lighting Trac System Fixture Adapter Installation Instructions 5/5/2017 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures JUN_235160.06_Narrow Profile Wall Wash Track Brochure.pdf T105xL Narrow Profile Wall Wash Track Fixture family Brochure 12/20/2024 View
