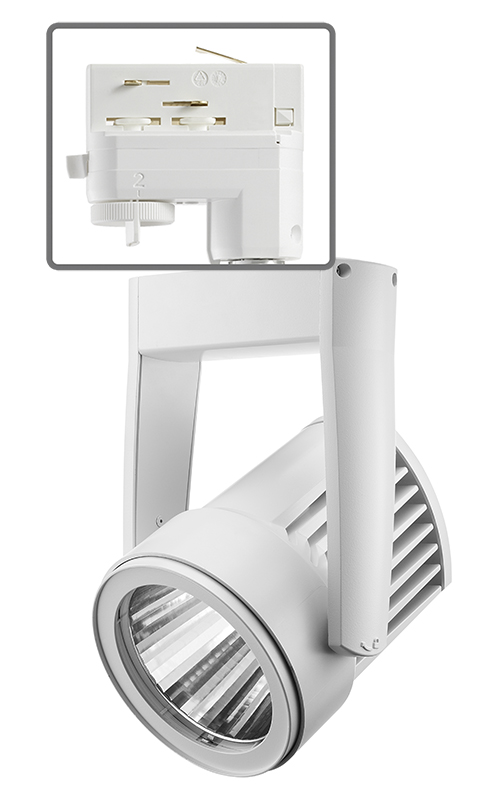

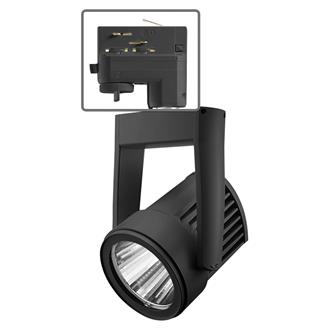

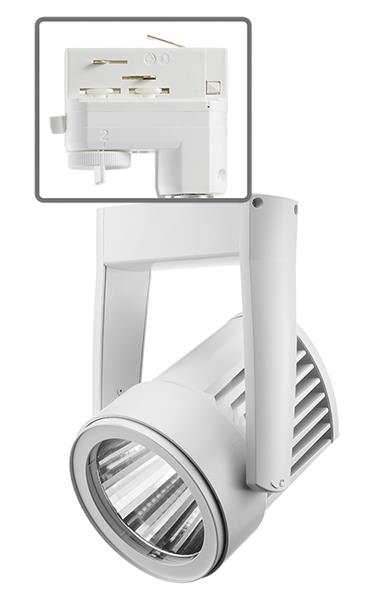

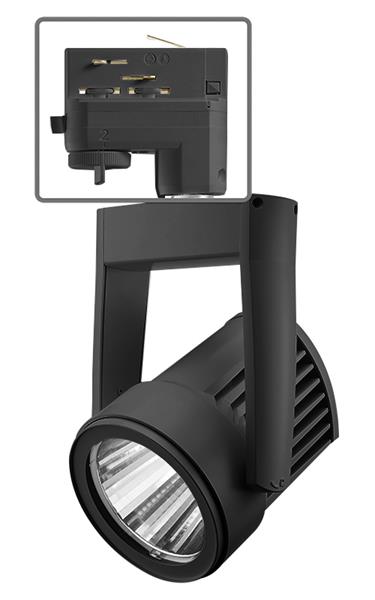

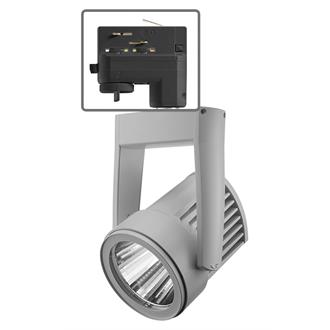

T255L TEK Trac Head

Trac-Master® Cylindra™ LED Trac Head with TEK Adapter

By Juno

    DLC Standard / PremiumBuy America(n)
  • Overview
  • Specifications
The Juno® T255L TEK-Series, Cylindra™ LED trac fixture produces over 3,400 lumens from just 36W input. It approximates the light output and distribution of 70W PAR30L CMH lamps, but consumes a little over half the energy, and with a 50,000-hour rating, it lasts far longer and offers significantly better lumen maintenance over its life. Available in 4 color temperatures, T255L TEK-Series Cylindra LED is compatible with the 120V Juno HD Commercial Trac system.
Read More
Read Less
Light Source LED - Static
Lumens 3500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Compliance Listing BAA, DLC Standard
Dimming Protocol Forward Phase, Reverse Phase
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 120
Fixture Wattage 46
Track Mounting Adapter TEK
Series T255L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET T255L_D1_3_46.pdf T255L G2 Trac-Master Cylindra 35W LED 3/30/2022 View
    SPEC SHEET T255LG2-DIM.pdf T255L G2 Dimmer Compatibility View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3218.pdf TEK 120V Lighting Trac System Fixture Adaptor Installation Instructions View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Juno Cylindra LED Trac Brochure.pdf Juno Cylindra LED Trac Brochure View
