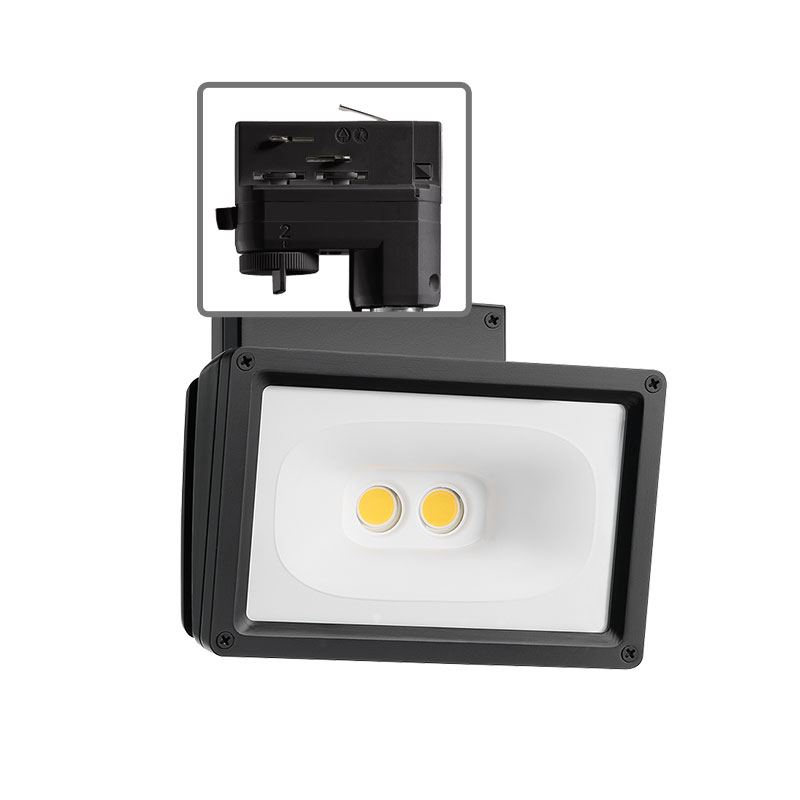

T258L HTEK Trac Head

Trac-Master® Wall Wash, Flood LED Trac Head with HTEK Adapter

By Juno

    Buy America(n)
  • Overview
  • Specifications
Juno® T258L HTEK wall wash/flood LED trac fixtures produce up to 2,567 lumens from just 20-watts input, yielding energy-saving efficacies of up to 128 lumens per watt. Installs on 277V, Juno HD Commercial Trac system. The narrow-profile design permits a greater concentration of fixtures to be placed on the same section of track. Custom hyperbolic reflectors deliver exceptionally uniform, wide beam distributions. The T258L HTEK wall wash/flood fixture provides 360° horizontal rotation and 90° vertical aiming. An assortment of light control accessories is available.
Read More
Read Less
Light Source LED - Static
Lumens 2500 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 97
Product Type Track Head
Compliance Listing BAA
Dimming Protocol Forward Phase, Reverse Phase
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 277
Fixture Wattage 46
Track Mounting Adapter HTEK
Series T258L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET D1_6_7.pdf Trac-Master® LED Wall Wash, Flood Trac Head View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P3222.pdf Juno 277V HTEK Trac System Installation Instructions View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Juno Trac-Master LED Wall Wash Brochure.pdf Juno Trac-Master LED Wall Wash Brochure View
