Hyperbolic Silent Ceiling Reflector Trim - Install

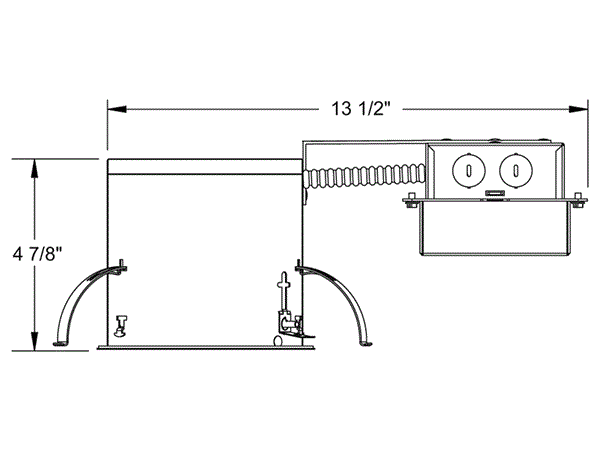

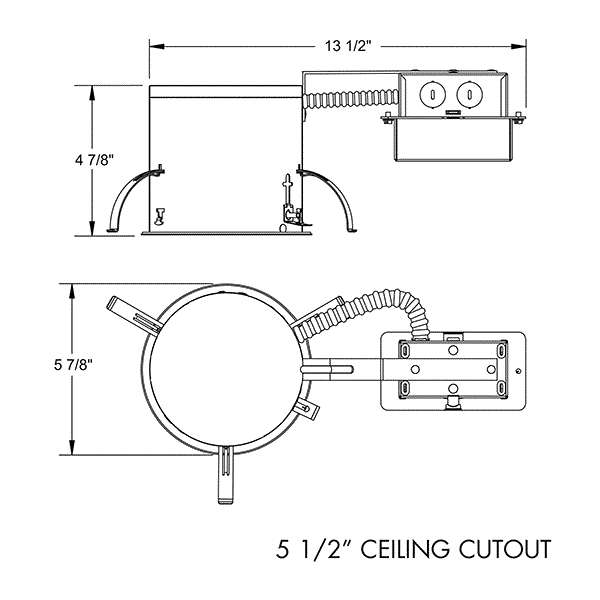

IC20RLED 900LM Remodel Housing

LED 5in Round Remodel Housing

by Juno

  • ENERGY STAR®

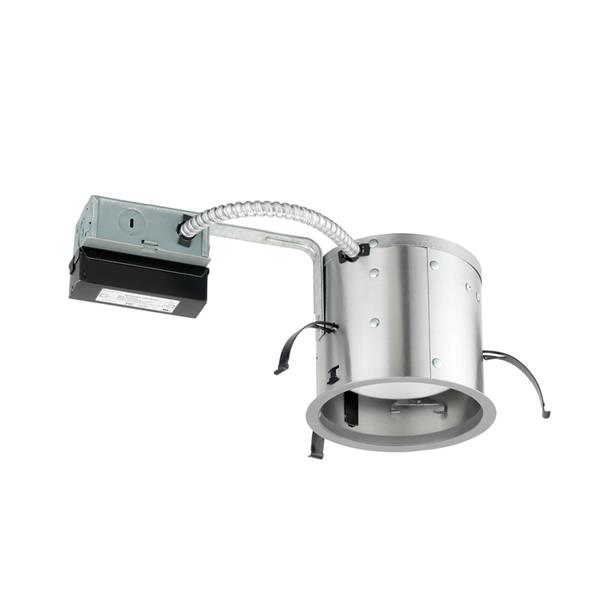

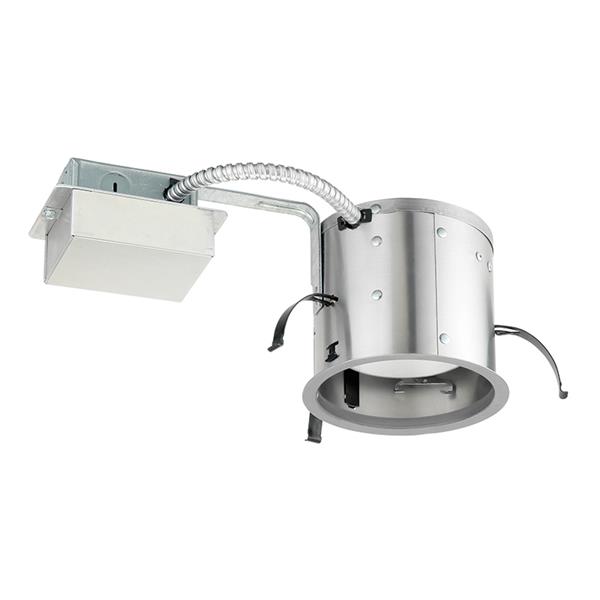

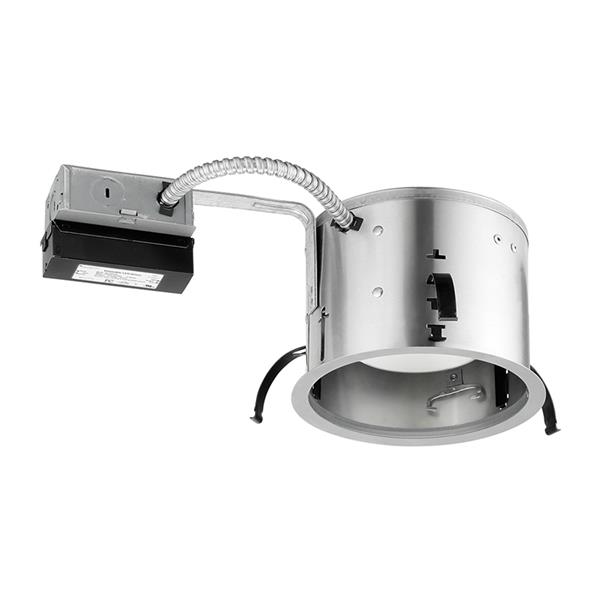

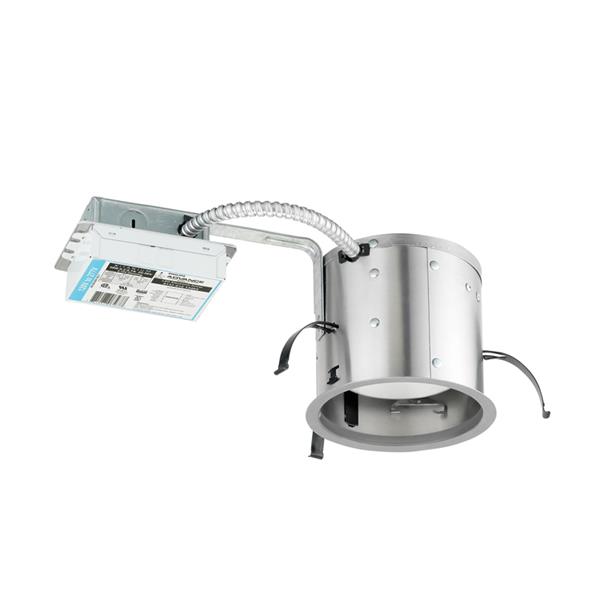

The Juno® IC20RLED 900LM 5-inch downlight features a dedicated LED, remodel housing with integral light engine for applications where the backside of the ceiling is not accessible. The LED housing is designed to provide 50,000-hours of life and is compatible with many standard Juno trims. Its shallow design allows for a fit in 2 x 6 construction. The fixture is secured in place by factory-installed remodel springs and can be completely covered with insulation. When used with supplied Air-Loc® Gasket (ALG) kit, the downlight stops infiltration and exfiltration of air, reducing heating and cooling costs.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Size 5 IN
    Brand Juno
    Color Rendering Index 90
    Correlated Color Temperature 2700 K, 3000 K, 3500 K, 4000 K
    Environment Indoor
    Light Source LED - Static
    Regulatory Listing cUL, UL
    Lumen Output 900 LM
    Product Type Housing
    Series IC20RLED
    Shape Round
    Voltage Rating 120, 120-277
