6RLD Trim

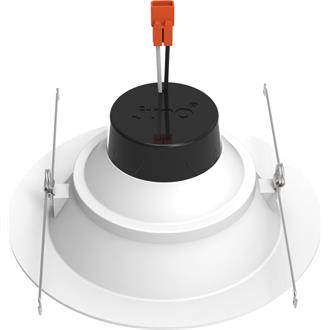

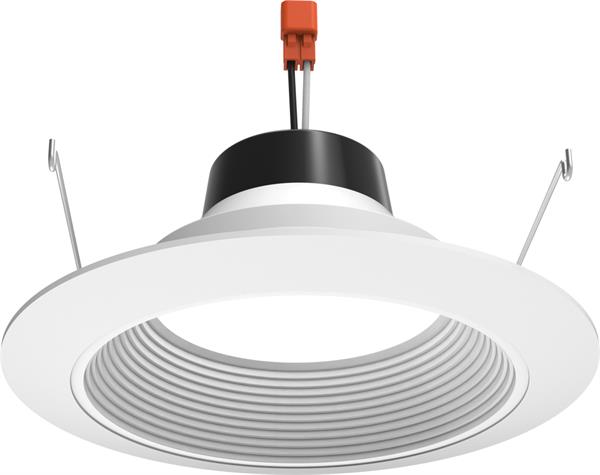

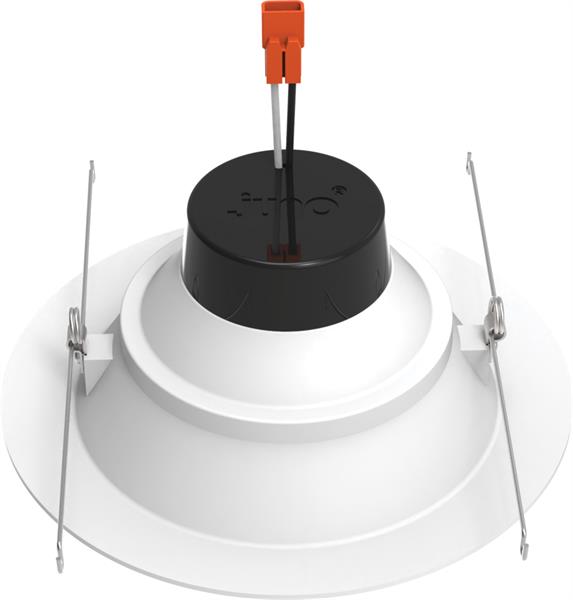

LED Wet Location 6in Round Baffle Retrofit Downlight

By Juno

    Energy Star®CA Title 24/JA8CA Title 20
  • Overview
  • Specifications
With the Juno RLD Series 6RLD 6-inch LED retrofit trim modules, upgrading your existing 6-inch medium base recessed lighting fixture is economical and is as simple as replacing an incandescent lamp and can provide energy savings as much as 85%. Pair the 6RLD with the Juno IC23 LEDT24 for a low cost LED new construction downlight solution.

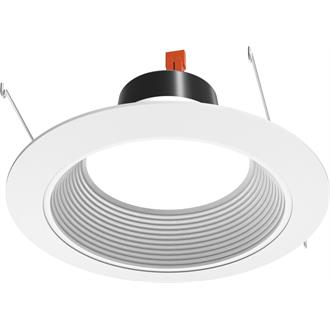

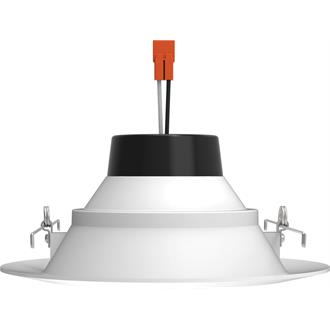

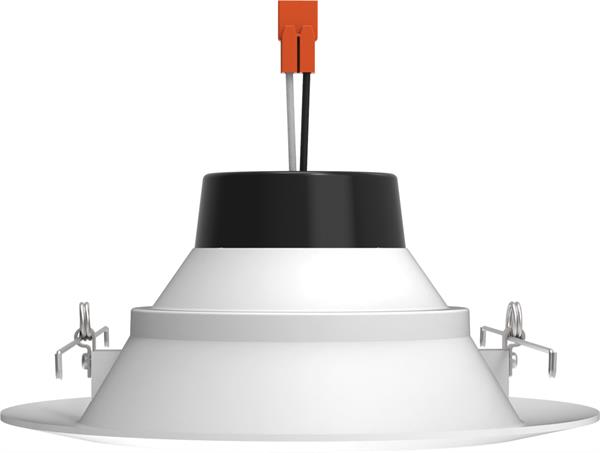

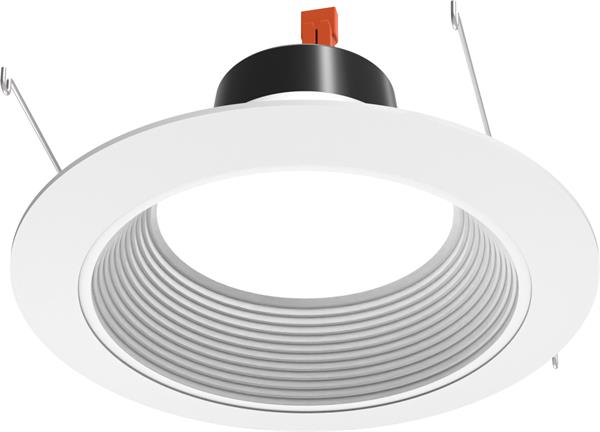

The 6RLD retrofit trim module offers a more redefined look from ordinary LED retrofits by offering dedicated trims sizes for true aperture aesthetics. The dedicated 6” trim provides the best balance of fixture illumination and the overall size of the trim flange. Combine that with the durable die-cast aluminum all-in-one design with knife edge trim detail, deep source regression and crisp baffle grooves that minimizes glare and you get the best overall trim aesthetic when installed in the ceiling.
Offered in two lumen packages of up to 700 (8W) or 1000 (12W) lumens and available in either 2700K or 3000K color temperatures with 90+ CRI for superior light quality and consistency.

Dimmable to 5% with many incandescent, magnetic low voltage or electronic low voltage box dimmers. Wet location listed, ENERGY STAR® certified and be used to comply with Title 24, JA8 high efficacy light source requirements and California T20. 5 Year limited warranty. Dimmable to 5% with many incandescent, magnetic low voltage or electronic low voltage box dimmers. Wet location listed, ENERGY STAR® certified and be used to comply with Title 24, JA8 high efficacy light source requirements and California T20. 5 Year limited warranty.
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Static
Lumens 700 LM, 1000 LM
CCT / LED Color 2700 K, 3000 K
CRI 90
Product Type Trim
Compliance Listing CA Title 20, CA Title 24, ENERGY STAR®, JA8
Environmental Listing Air Loc, Wet Location
Regulatory Listing cULus Classified
Dimming Protocol Forward Phase, Reverse Phase
Trim Style Baffle
Color White
Mounting Type Recessed
Voltage Rating 120
Fixture Wattage 12, 8
Series 6RLD

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 6RLD G4.pdf 6" Juno Retrofit Downlight, G4 700 and 1000 Lumens 11/7/2022 View
    SPEC SHEET JUNORLDSERIES-DIM.pdf Juno RLD Series Dimmer Compatibility 7/21/2021 View
    SPEC SHEET DISCONTINUED 6RLD G3 07LM G1_8_61.pdf (Discontinued) DISCONTINUED 6" Juno LED Retrofit Downlight, 700L 5/23/2021 View
    SPEC SHEET DISCONTINUED 6RLD G3 10LM G1_8_60.pdf (Discontinued) DISCONTINUED 6" Juno Retrofit Downlight 1000L 2/1/2021 View

    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions p6272.pdf 4th Generation 4RLD, 5RLD & 6RLD Retrofit Trim Installation Instructions 5/6/2021 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures RLD Brochure.pdf 4in & 6in RLD Brochure 1/26/2022 View
    Brochures RLD Crossover Guide.pdf RLD Crossover Guide 5/24/2021 View
