4" Internally Adjustable New Construction Housing
4" Internally Adjustable LED Fixture - Product Pro

TC4RAL 1000LM Housing

LED 4in Round Internally Adjustable Remodel Housing

By Juno

    Energy Star®
  • Overview
  • Specifications

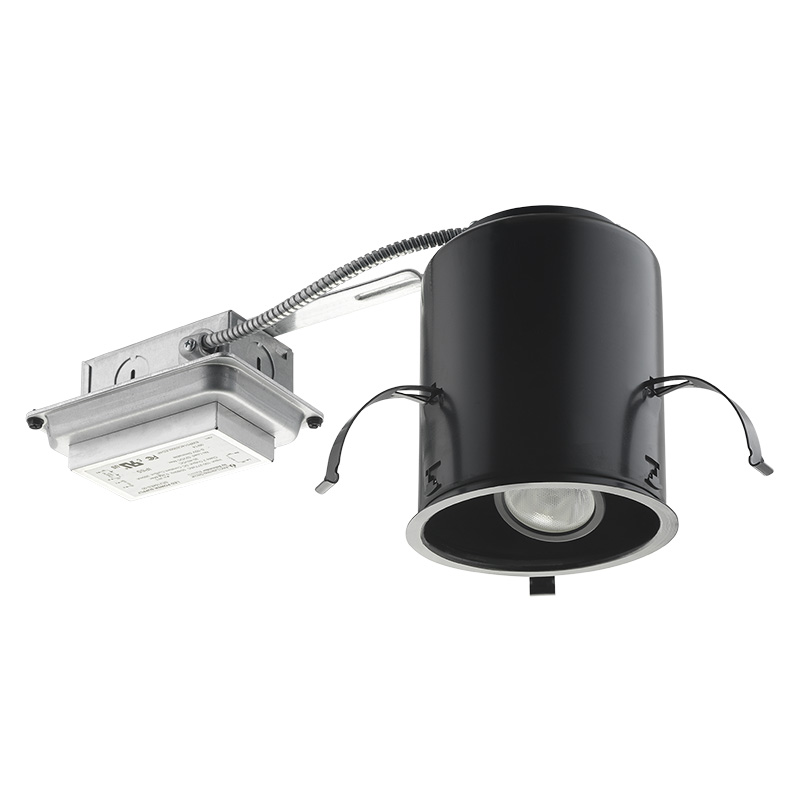

Juno® 4-inch internally adjustable, 1000 lumen LED, non-IC remodel housings cater to a wide range of application possibilities with just a change out of trims. Offering internal adjustability of up to 35° vertical and 360° rotation using the patent pending adjustable light engine modules, light can be directed where needed for downlighting or accent lighting applications. A stunning collection of round and square trims, including downlights, adjustables and lensed along with industry exclusive sloped ceiling trims are easily changed out in the field to adapt to future design needs.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
Lumens 800 LM, 1000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 90
Product Type Housing
Compliance Listing ENERGY STAR®
Environmental Listing Non-IC
Dimming Protocol 0-10V, Forward Phase, Reverse Phase
Mounting Type Recessed
Voltage Rating 120, 120-277
Fixture Wattage 16.6
Series TC4RAL
