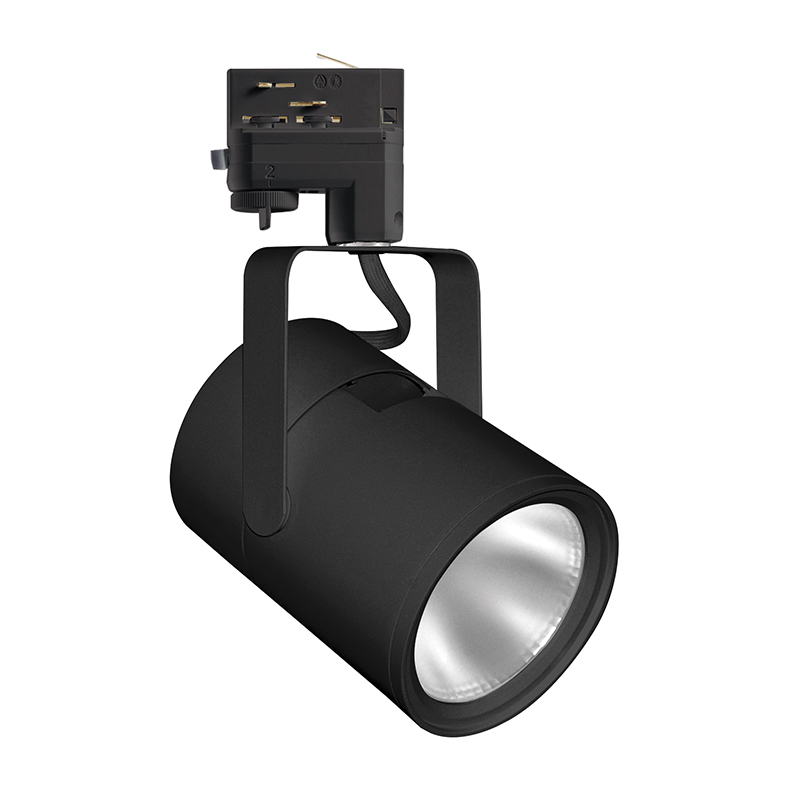

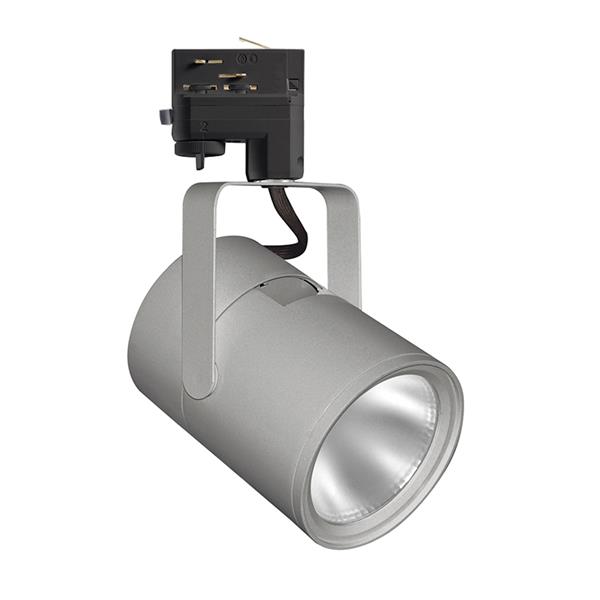

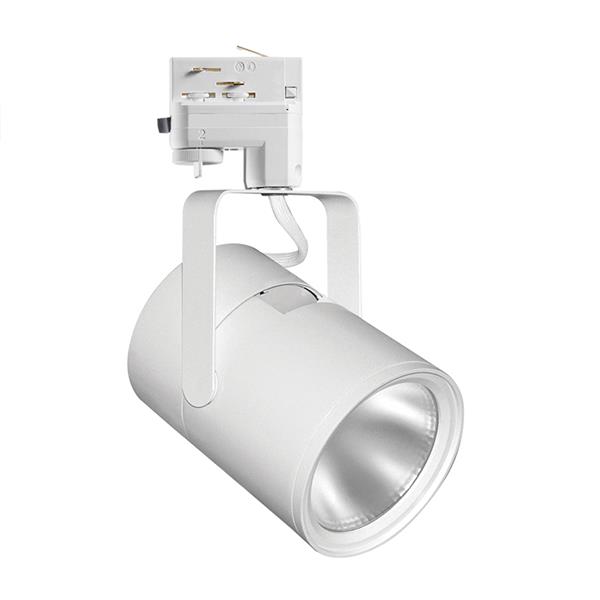

T283L TEK Trac Head

Trac-Master® Flat Back Cylinder LED Trac Head with TEK Adapter

By Juno

    Energy Star®DLC Standard / PremiumBuy America(n)
  • Overview
  • Specifications
The T283L TEK Series is designed with a unique, patented, precision optical system which produces uniform spot, narrow flood or flood distributions. The 26W TEK283L Series can deliver up to 2664 lumens, utilizing less than 1/3 of the energy of halogen equivalents and having a rated life of 50,000-hours. It is available in 2700K, 3000K, 3500K and 4000K color temperatures and 80 or 90 CRI versions. Optional SpectralWhite color/white enhancing versions offer CRI and Color Quality Scale (CQS) scores of 90+, rendering colors richly and making whites appear naturally brilliant.  Its fashionable, elegant flat back cylinder design compliments any decor.
Read More
Read Less
Light Source LED - Static
Lumens 2400 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K
CRI 80, 90, 90 SpectralWhite
Product Type Track Head
Compliance Listing BAA, DLC Standard, ENERGY STAR®
Dimming Protocol Forward Phase, Reverse Phase
Color Black, Silver, White
Mounting Type Track/Monopoint
Voltage Rating 120
Fixture Wattage 26
Track Mounting Adapter TEK
Series T283L

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET D1_5_9.pdf T283L Juno Trac-Master® 26W Flat Back Cylinder LED 4/12/2022 View
    SPEC SHEET T283L-T285L-DIM.pdf T283L and T285L Dimmer Compatibility View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions P4218.pdf Installation Instructions for T283L/T285L Accessories View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Juno Trac-Master Flat Back Cylinders Brochure.pdf Trac-Master Flat Back Cylinders Brochure.pdf View
