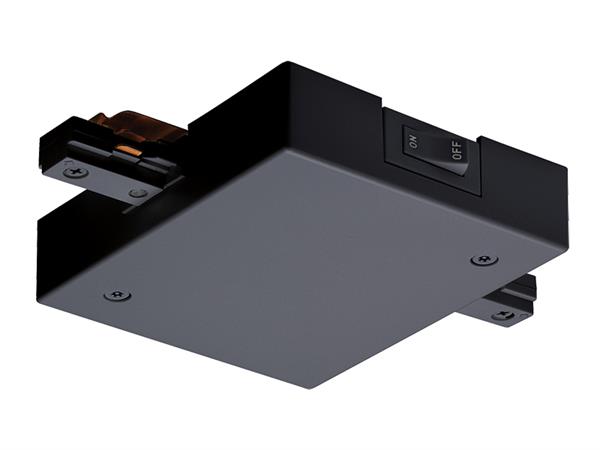

TUCLF21 Connector
By Juno
- Overview
- Specifications
Designed to be installed at every trac feed location in place of a standard non-limiting feed; not intended to be used as a primary circuit protector In-line feeds can be used to feed trac as 1 electrical circuit in both directions or as 2 separate circuits using 2 current limiters Limits circuit wattage, not the type or number of fixtures used; provides maximum flexibility to accommodate lighting design modifications and layout changes Feed connector and current limiting circuit breaker are specified and ordered separately for maximum configuration flexibility; white, black, or silver finishes Injection-molded, polycarbonate feed cover attaches to heavy-duty, die-formed galvanized steel mounting plate with tamper-resistant screws Surface or J-box mounting; T-bar compatible when fed directly Center knockout enables feeding from J-box to facilitate wiring termination; J-box mounting holes provided The current limiters are single-pole supplementary circuit breakers that limit the current (wattage) that can be consumed on the trac section being fed Supplementary current limiters available in 13 amperage ratings from 0.5-14A; amperage selected based on actual lighting loads UL/cUL Listed; California Title 24 Compliant; ASHRAE 90.1 Compliant
Product Type | Feed |
Compliance Listing | BAA, JA8 |
Color | Black, Silver, White |
Voltage Rating | 120 |
Series | TUCLF21 |
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET T_TU_CL Feeds_D1.15.1.pdf Trac-Master Current Limiting Feeds for T Series and TU Series Trac Systems 3/1/2022 View -
Photometry & Revit (BIM)
Use %(percent) to separate search terms.Description Report Design Tools {{photometryItem.Catalog}} Report CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Installation Instructions P2473.pdf TUCLF11 and TUCLF21 Installation Instructions 5/5/2017 View -
