IC1FW LEDT24 Housing

FireWall™ 4in LED Fire-Rated Quick Connect New Construction Housing

By Juno

    CA Title 24/JA8
  • Overview
  • Specifications

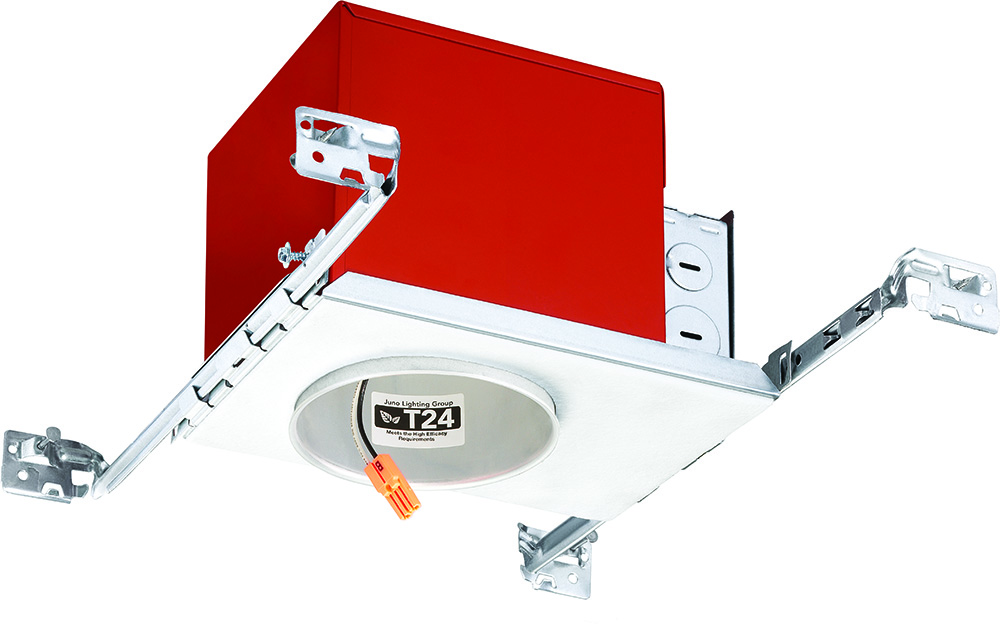

The Juno IC1FW LEDT24 FireWall™ 4-inch Fire-rated quick connect LED housing offers a non-screw base 120V plug-in connector for simple installation of Juno retrofit LED trim modules. The new construction housing features an innovative, patent pending mechanical design stringently tested to conform to UL263 and ASTM STD E119 to provide protection against the spread of heat and flames into the ceiling cavity for 1 hour and 2 hours. The IC-rated fixture’s shallow housing can fit in a 2 x 6 construction and can be completely covered with insulation. The fixture is Air-Loc® sealed to stop infiltration and exfiltration of air, reducing heating and cooling costs.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
Product Type Housing
Compliance Listing CA Title 24
Environmental Listing Damp Location, IC
Dimming Protocol Forward Phase, Reverse Phase
Color Unfinished
Fixture Wattage 13.5
Series IC1FW
