4RLA Trim

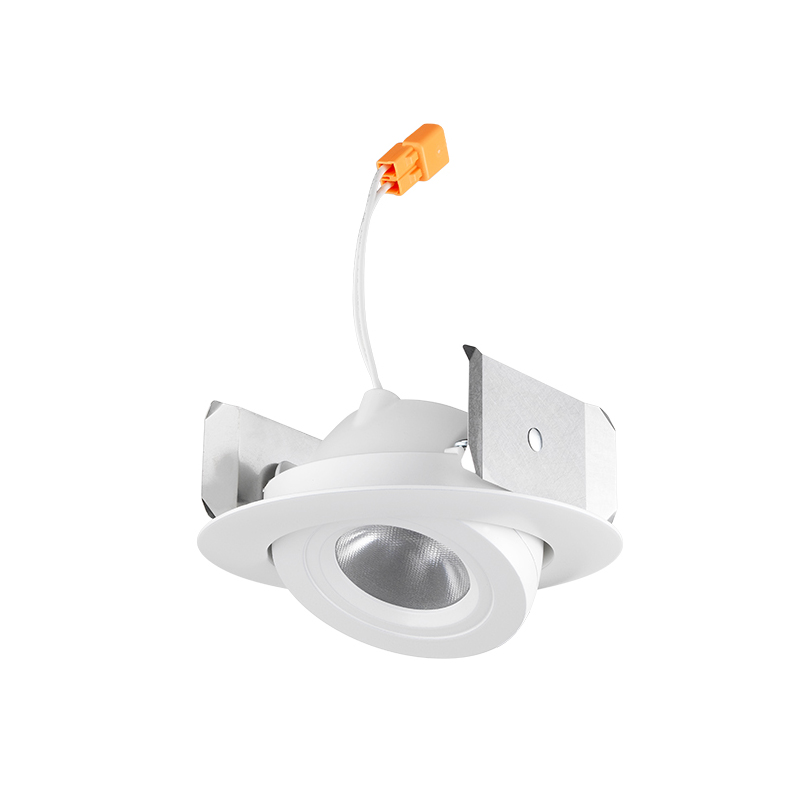

LED 4in Round Adjustable Retrofit Downlight

By Juno

    Energy Star®  CA Title 24/JA8
  • Overview
  • Specifications
The Juno® Basics Series™ 4RLA Adjustable is designed for vertical aiming up to 35° and is offered in a choice of optics: 25° narrow flood, or 65° wide flood. In this all in one design, the LED light engine is mounted directly to the housing for superior thermal management and the gimbal trim with built-in flange is made of durable die cast aluminum. The 4RLA adjustable provides over 600 lumens of high-quality light equivalent to a 65W incandescent lamp. But since they require just 10.5-watts input, you can expect lighting energy savings of as much as 85%.
Read More
Read Less
Size 4 IN
Shape Round
Light Source LED - Static
Lumens 600 LM, 800 LM
CCT / LED Color 2700 K, 3000 K
CRI 90
Product Type Trim
Compliance Listing CA Title 24, ENERGY STAR®, JA8
Environmental Listing Damp Location
Regulatory Listing cUL, UL
Dimming Protocol Forward Phase, Reverse Phase
Trim Style Adjustable, Gimbal, Lensed
Color White
Voltage Rating 120
Fixture Wattage 10.5
Series 4RLA

Read More Read Less
